Kitchen Gas Cooktop 2 Dual Burners Tempered Glass Countertop Drop-in Gas Hob

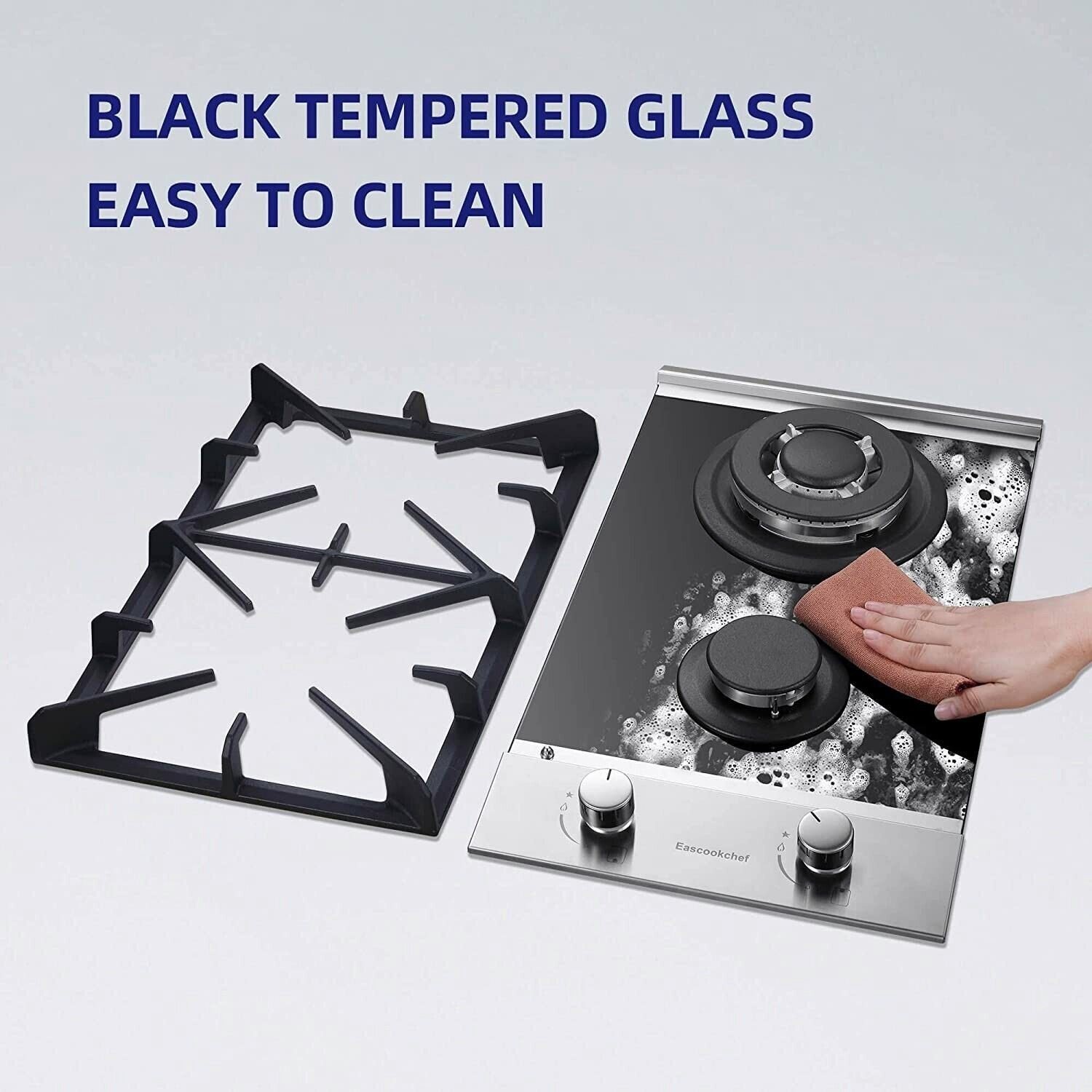

Eascookchef Gas Cooktop 12 inch, 8mm Tempered Glass in Black

2 Burners Power: 10,500 BTU + 5,000 BTU

Fuel type: Natural Gas (NG) are preset and can be replaced with Liquefied Petroleum Gas (LPG) nozzles.

Please note that:

1) Extra LPG Nozzles included in the pageage, the natural gas pressure regulator and the gas pipe are NOT included.

2)It is recommended that gas stove be installed and tested by professionals.

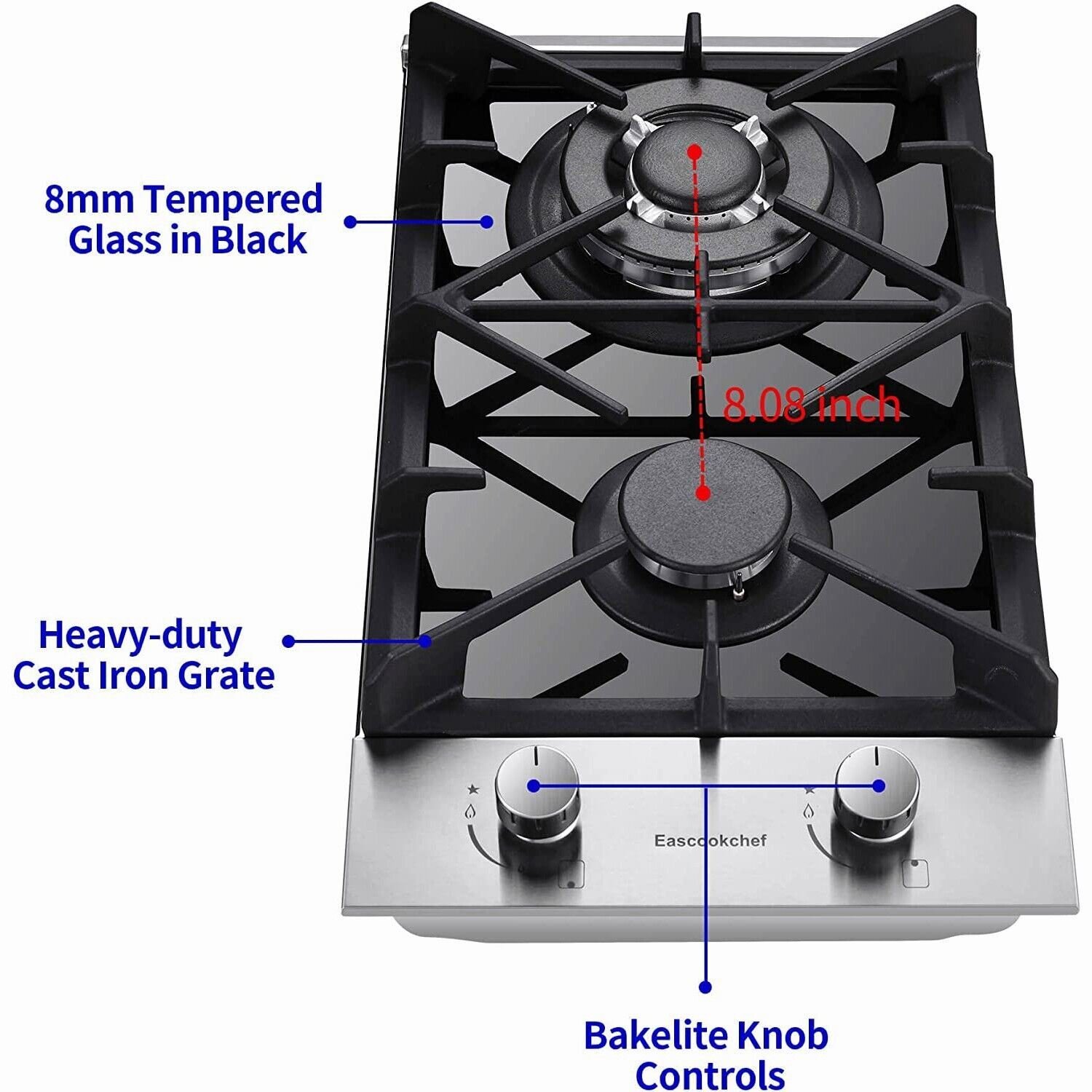

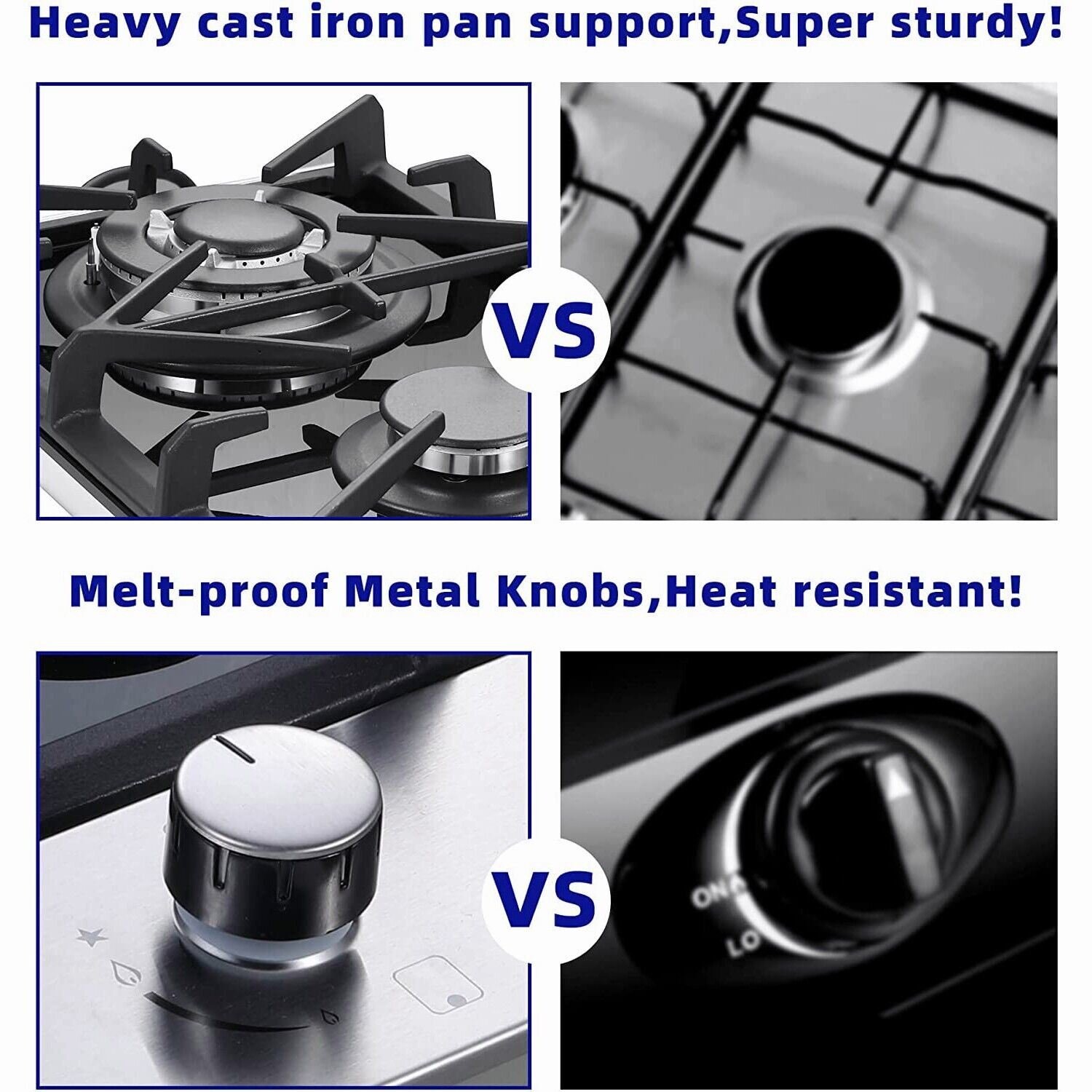

Pan Support Material:Heavy-Duty Cast Iron

Control Type: Bakelite Knobs Control

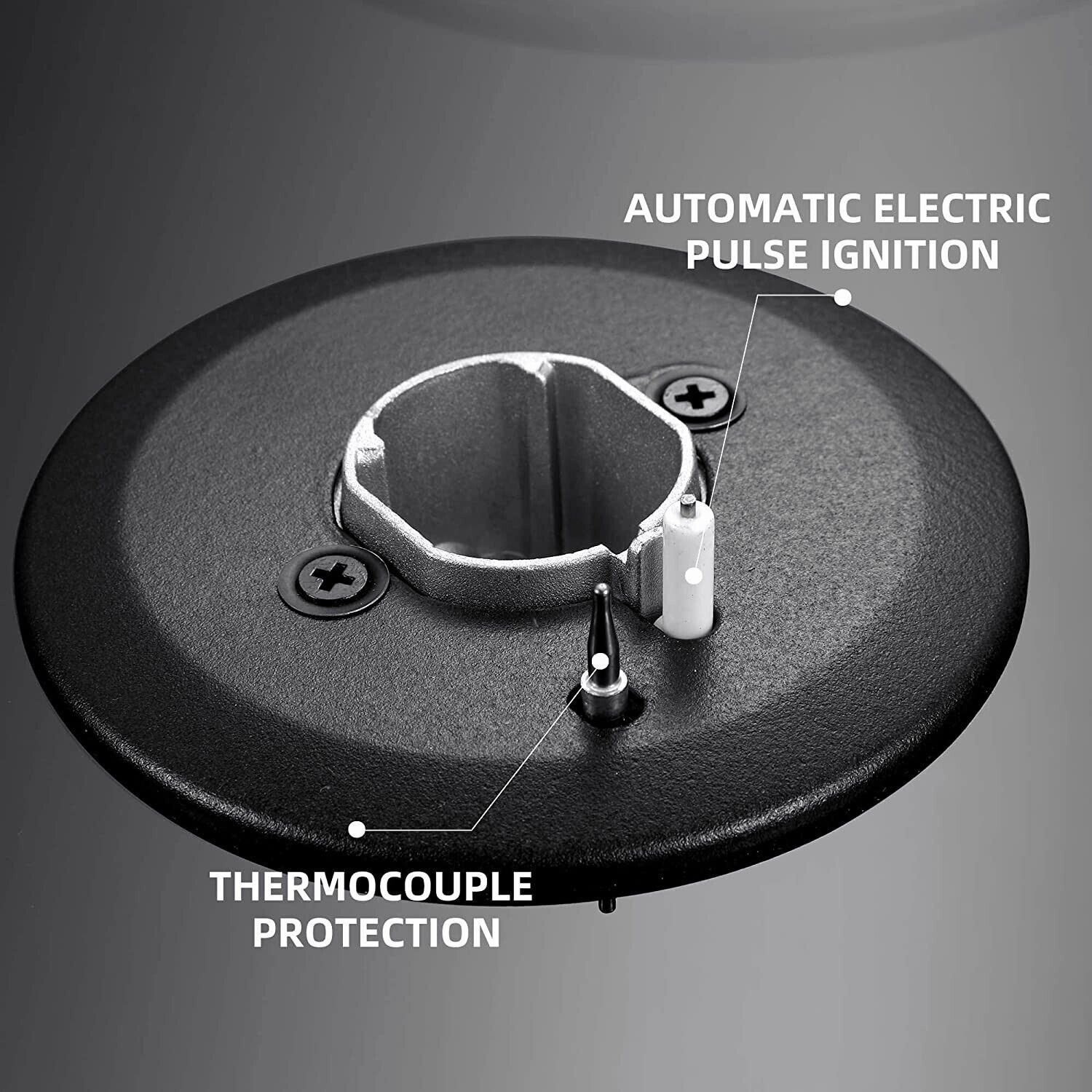

Ignition Type: Electronic pulse ignition

Voltage: 110V, 3-prong plug

Cable Length: 4.5 Feet

Installation Type: Built-in

Installation of built-in gas cooktop

This gas cooktop is for bulit-in use only, please verify the gas cooktop is the right size for you.

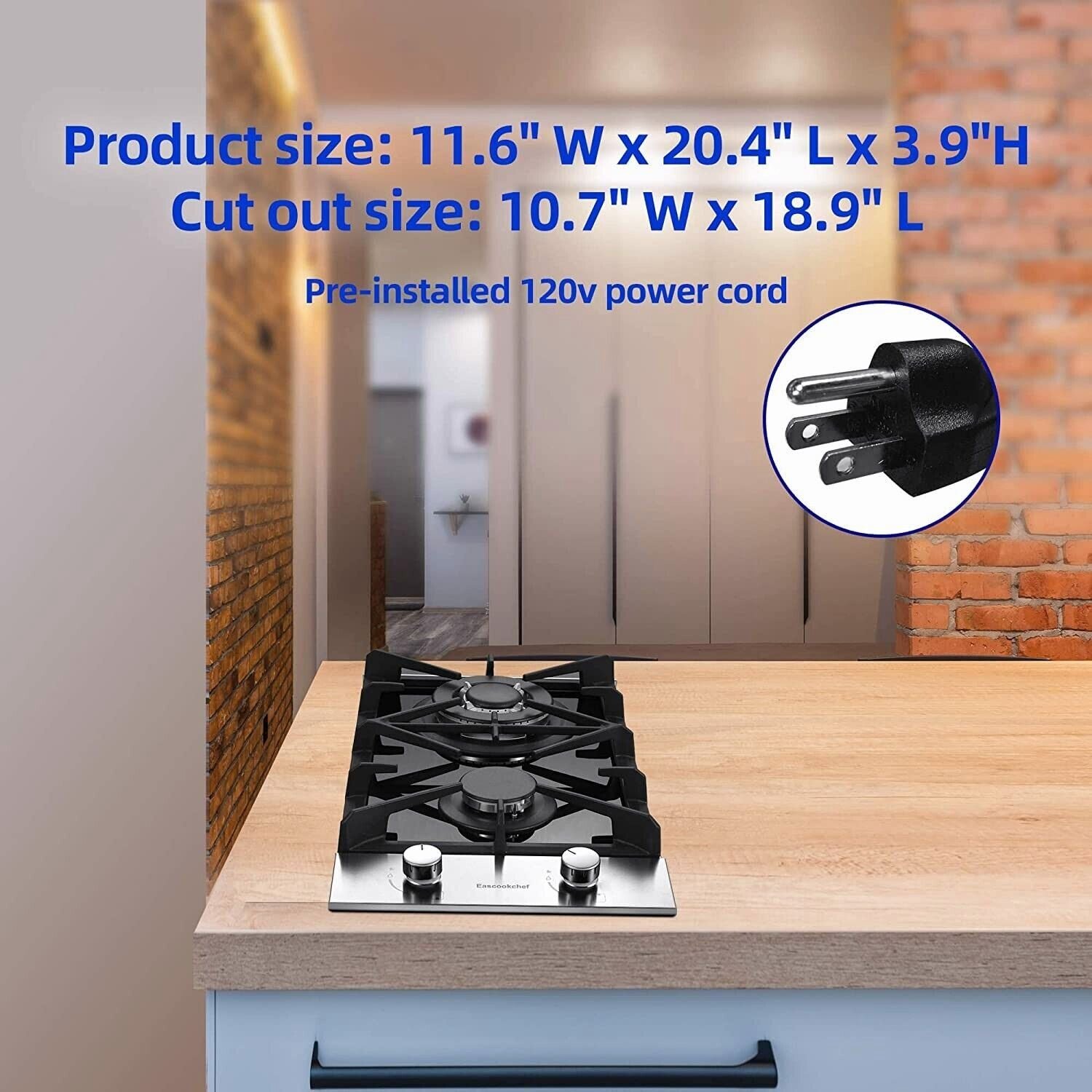

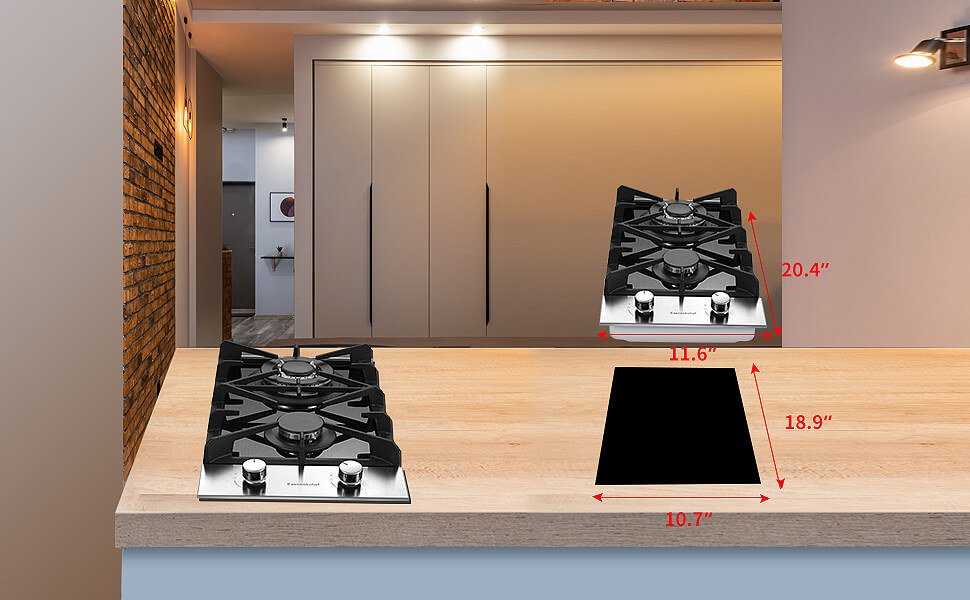

Product Dimensions: 11.6" W x 20.4" L x 3.9"H

Cut out Dimensions: 10.7" Wx 18.9" L

For a correct installation, the following precautions must be followed:

a) Fixing fittings (brackets, screws) are provided to place the gas cooktop on work top, measure 0.79 to 1.58 inch in thickness

b) In the event the gas cooktop is not installed on a built-in oven, a wooden panel must be inserted for insulation.This panel must be placed at least 0.79 inch distance from the bottom of cooktop.

c) When installing the gas cooktop on a built-in oven, the oven should be placed on two wooden strips; in the case of a joining cabinet surface, remember to leave a space of 1.78 x 22 inch at least from the back side.

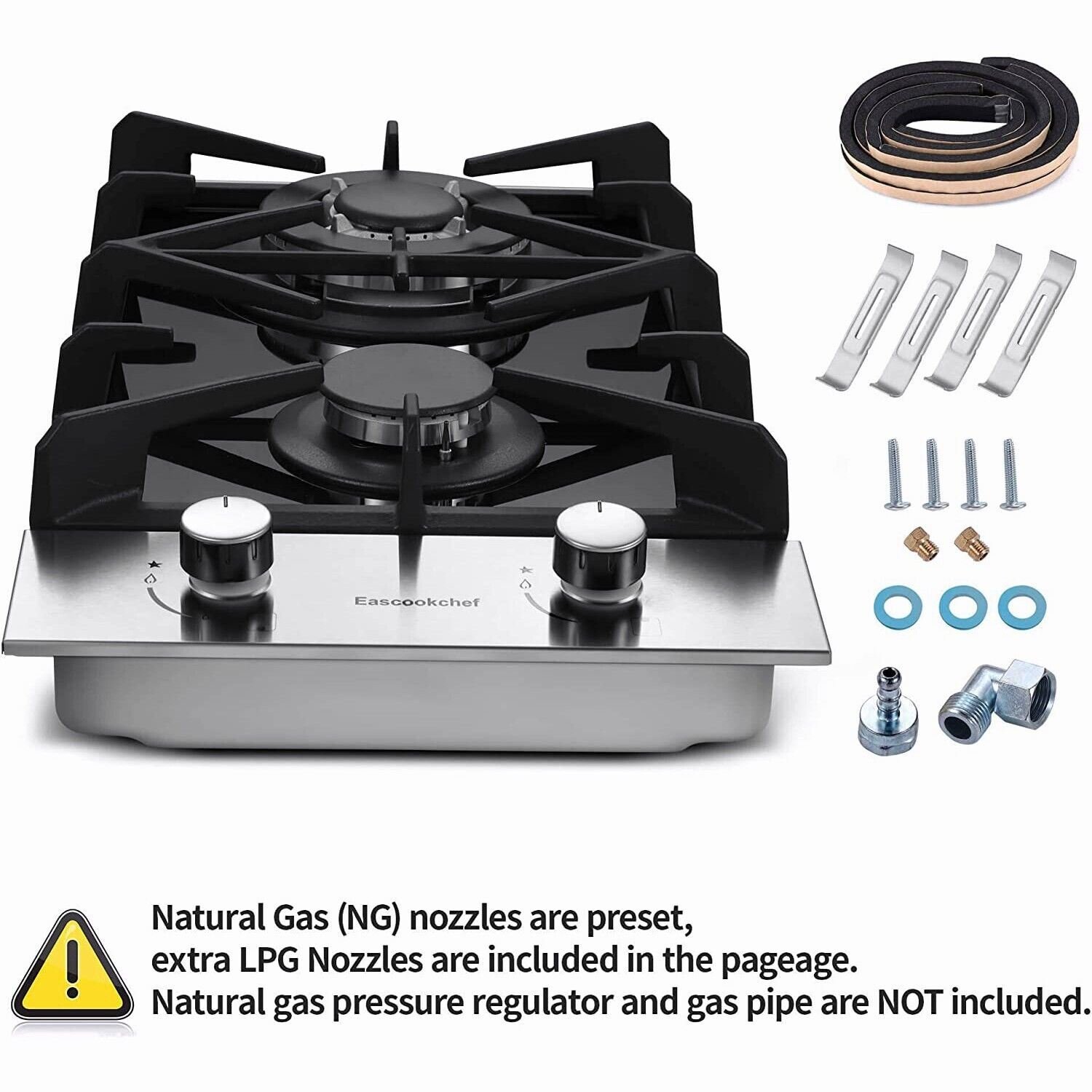

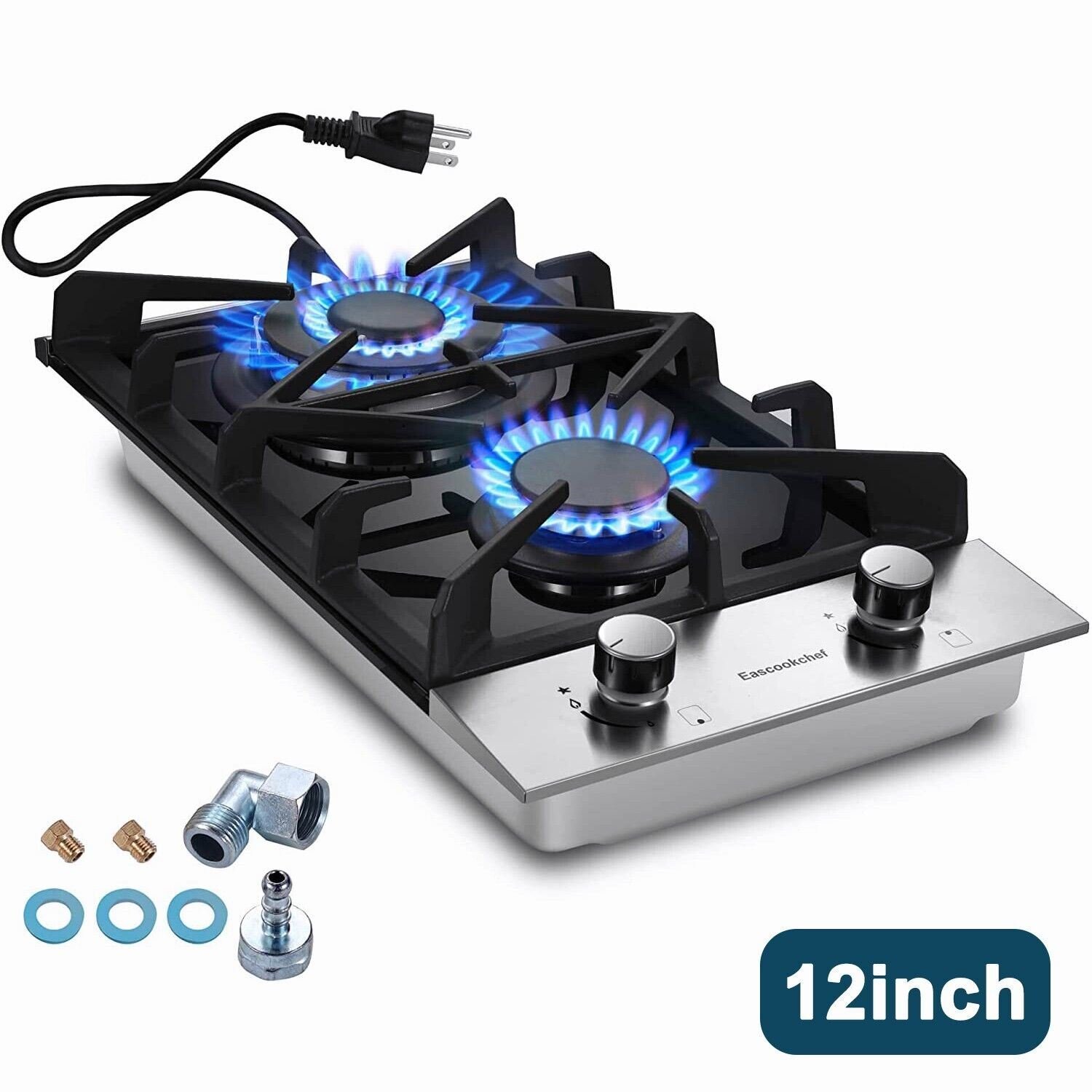

12 inch Gas Cooktop with pot stand

Preset NG nozzles(extra 2 Propane nozzles)

1/2 NPT Connector and Elbow Connector with sealing rings

Mounting brackets and screws

Sealing strip

Cut-out Template Board

User Manual
